Brick Texturing Machine Automation
Scope & approach
JC Smale needed automation delivery to keep pace with mechanical development on a brick texturing machine. The machine design was still evolving while the controls were being written, so the control logic and HMI had to move with a moving target rather than a fixed specification. Metromotion Controls worked with the engineering team and structured the HMI around recipe-based operation, holding the texturing parameters as selectable recipes so a stored set could be recalled and applied to the texturing sequence without reprogramming. The team built the HMI for recipe-based operation and supported commissioning in the workshop and at the end-customer site.
What was delivered
- Automation was developed in step with the OEM's concurrent mechanical development, with control logic and the HMI adapted as the machine design matured rather than waiting on a frozen design.
- The HMI was built around recipe-based texturing workflows, holding parameters as stored recipes so operators could select a set and apply it to the texturing sequence through recipe management and operator controls.
- Commissioning support covered both the OEM workshop and the end-customer site.
Scope items
- Automation integration of new equipment during concurrent mechanical development

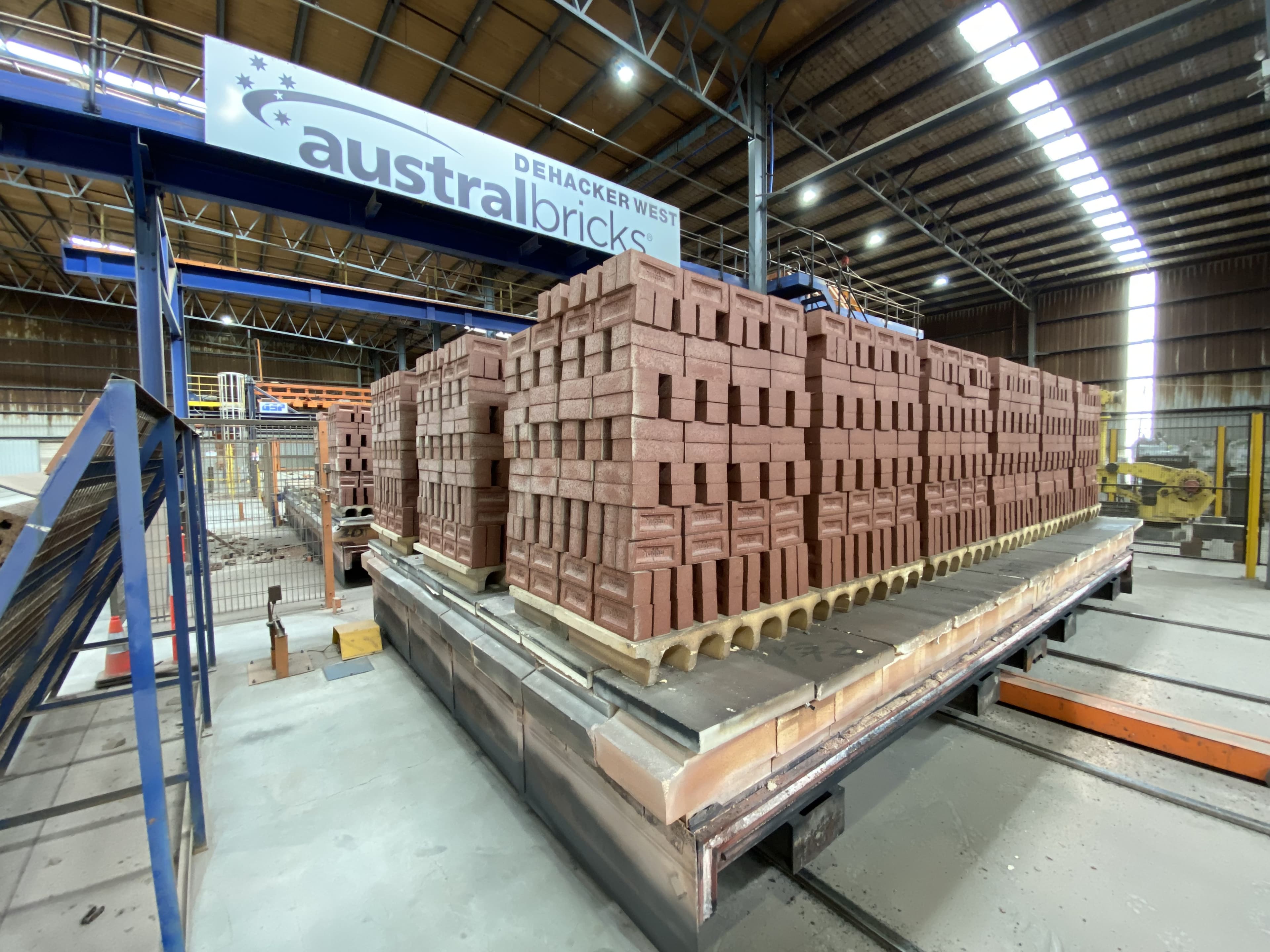

- Site commissioning at both the JC Smale engineering workshop and the end-customer brickworks site
- Collaborative HMI design aligned to complex recipe management and operator workflows
